FABRIC SAMPLES

AUTOMATIC ALBAPRENS

This machine allows to cut any kind of fabric in zig-zag. It is very strong, fast and useful for large productions.

It is manufactured with double advance of the automatic or semi automatic cutting table and very simple digital screen to programme all the desired functions very easily.

The machine is equipped with laser beam indicator of cutting and slow manual advance to set the cuttinf table perfectly.



MODEL A100:

  • Laser cut indicator.
  • 1.020x50mm teeth blade.
  • Cutting board: 1.020x10x1.020mm.
  • Cutting thickness 30/40mm.
  • Power 2'2kw.
  • Approx. weight 450kg.
  • Size 1.350x2.800x1.500mm.
  • Safety doors according to CE rules.

MODEL A160:

  • Laser cut indicator.
  • 1.620x60mm teeth blade.
  • Cutting board: 1.620x10x1.620mm.
  • Cutting thickness 30/40mm.
  • Power 3kw.
  • Approx. weight 800kg.
  • Size 1.350x3.900x2.200mm.
  • Safety doors according to CE rules.

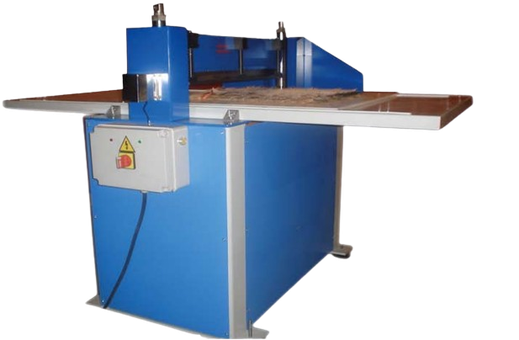

SEMI AUTOMATIC ALBAPRENS

This machine allows to cut any kind pf fabric in zig-zag. It is very strong, specially designed for medium and small productions.

The machine is equipped with laser beam indicator of cutting and manual advance of the cutting table by means of streering wheel and digital counter driven by encoder that guarantees the precision in the cutting at different measures.



MODEL M050:

  • Laser beam indicator of cutting.
  • Teeth blade rectified in zig zag.
  • Cuting tapestry 520x10x520mm.
  • Staring and stopping push button.
  • Motor reducer of 1 CV with brake.
  • Approx. weight 150kg.
  • Size 1.500x1.000x1.200mm.
  • Safety doors to stop the machine when cutting (Optional).

MODEL M100:

  • Laser beam indicator of cutting.
  • Teeth blade rectified in zig zag.
  • Cutting thickness 20/25mm.
  • Starting and stopping push button.
  • Motor reducer of 3 CV with brake.
  • Approx. weight 350kg.
  • Size 13.500x2.800X1.500mm.
  • Safety doors to stop the machine when cutting (Optional).

COLECCIO 800

  • Semi-automatic machine designed  to supply the professionals of this sector with a semi-automatic machine to manufacture fabric samples in waterfall by thermo-fixing or self-adhesive.
  • Very easy to programme and operate, it includes into the menu to create and enter different programmes and customer files stored in the memory.
  • This machine is driven by a pneumatic pedal. Advance with servomotor that allows an adjustment of the measures for the heat-set action.
  • The machine COLECCIO 800, has been designed to work with a maximum fabric width of 900mm and the required length, since it hasn't got any limit of length.
  • Safety system with protection barriers following CE rules.

PER-FOR

  • Drilling machine for samples folders.
  • It has got four drill bits which reach until 60mm depth.
  • Equipped with independent heads that are easy to manage in the change of measures between them, it includes lateral and frontal stop machinisms to set the folder and a device to fit, double and hold the lapels.
  • Control board with motors starting push botton. Pneumatic raising and descent of heads with drills and drilling speed regulation by 5 BARS pneumatic pedal.
  • Aspiration waste system which is set in a small bag.
  • Safety doors following CE rules.




REMACHADORA

Automatic and pneumatic rivets machine with transport trolley, Model J-230.

It is a very versatile machine because by means of changing its head, it can fit different kinds of rivets, adapting itself to every customer's needings.

Due to our customer's demand, we usually manufacture it for rivets of 10mm head, 4 mm came and a length from 8mm to 14mm.

The rivet is fit by means of pneumatic pedal. The exact placement of the rivet is got thanks to the laser point which indicates exactly the insertion point.

The transport trolley, mounted with guides and gear teeth, allows the fabric deplacement.

Air pressure regulator filter with oil lubrication.

This machine can be manufactured for different kinds of rivets.
